LED Lighting Glass Solutions for Commercial & Industrial Applications
Custom frosted diffuser glass, opal glass covers, and tempered lamp glass – developed for led lighting manufacturers worldwide.
Get Instant Quote
10+
Years OEM
1M+
Pcs Annual Capacity
80,000
sqm Factory
What Is LED Lighting Glass?
led lighting glass is a range of purpose-built glass components, covers, diffusers, lenses and decorative panels for LED light luminaire assemblies.
Standard float glass lacks the optical or thermal performance specifications modern LED applications now require. led lighting is a separate line of glass deep processing items, however at Saiwei Glass we forge these components with the high levels of the mechanical and optical performance that LED fixture manufacturers need.
So why do LED luminaires need dedicated glass? There are four reasons for this engineering decision:
Thermal management:
The high power density point-source nature of LED light modules means the glass directly above a high-powered LED array must endure rapid cycles of heat without developing microfractures, while fitting precisely against the aluminum heat sink or fixture frame to maintain thermal and aesthetic consistency.
Light diffusion control:
Without distribution of the LED’s intense point-source emissions, the lamp is invasive, provides hot spots and harsh glare. glass diffusers scatter the light as around a range of distributions – from moderately diffusing frosted glass to near-Lambertian illumination in opal glass covers.
UV durability:
The violet-UV light output of LED applications for sterilization, horticulture or white Led applications requires cover glass that transmits or blocks specific regions of the spectrum without hard to remove discoloration over years in operation.
Light intake:
The outdoor fixtures, industrial lighting, architecture and generalcommercial applications require glass that safeguards the LED at impact, withstanding corrosive or chemical pollutants without compromising its optical performance.
We cater for the full range of led glass glass covers and diffusers as a glass deep processing manufacturer for LED light OEMs worldwide. We evolve away from simple tempered clear covers to high-fidelity opal diffusing glass panels with ceramic silk-screen printing and multi-layer optical coatings. The solution specifics we engineer for every project relate to the type of fixture, environment and permanent illumination 1897. That each type of glass we manufacture should be highlight rather than reduce the luminaires output is central to our work.
The application ranges include lighting for interior commercial applications, decorative architectural illumination, street and landscape lighting, and industrial applications. They all require different combinations of transmittance, diffusion, heat tolerance and impact durability; consequently our responsibility is to ensure off-the-shelf glass can never replace properly engineered led glass.
Types of Light Diffuser Glass
We produce four main types of glass diffuser and cover glass for LED applications. Each combination of substrate and surface treatment exhibits different optical performance, durability and price point.
| Type | Material / Substrate | Transmittance | Diffusion Level | Max Temp | Best For |
|---|---|---|---|---|---|
| Frosted Glass Diffuser | Soda-lime float, acid-etched or sandblasted | 85–90% | Medium | 300°C | Indoor panel lights, ceiling fixtures |
| Opal Diffusing Glass | Flash-opal coated float glass | 40–70% | High (near-Lambertian) | 400°C | Uniform illumination, commercial lighting |
| Tempered Clear Glass Cover | Float glass, thermally strengthened | 90–92% | Low | 250°C | Outdoor fixtures, high-impact environments |
| Borosilicate Glass | Borosilicate silica composition | 91–93% | Low | 500°C | High-temp industrial, UV sterilization |
Transmittance figures derived from production samples according to ASTM E903. Max temperature reflects continued operating limit of the substrate.
Frosted Glass Covers
Frosted glass covers are perhaps the most commonly specified for commercial and domestic indoor applications. It prevents the LED chip array edges from having a focussed hot-spot and harsh glare, by scattering the light without dramatically affecting the high transmittance. Acid-etching creates a more precise and regular frost pattern than sand-blasting, so we recommend it for applications with the glass surface in close range of the user.
Opal Diffusing Glass
Opal diffusing glass is at the opposite end of the diffusion spectrum. Its flash-opal coating forms a semi-opaque, densely diffusing layer that scatters light to near-Lambertian distribution – meaning the glow seems equally bright at all viewing angles. Lower transmittance is the cost. Select opal when absolute elimination of any visible LED pixel structure is more important than optical efficiency.
Borosilicate Glass & Tempered Options
Borosilicate glass provides better thermal margins than standard soda-lime substrates. It is also harder to form and more expensive per piece.
In production, most exterior fixture manufacturers favor tempered glass over borosilicate – unless the operating temperature is undoubtedly above 300C, the price premium is rarely justified. Borosilicate gets specified mostly on industrial high-bay lights, UV germicidal fixtures, and specialized horticultural lighting in which junction temperatures are proven to be above that level.
Applications by Fixture Type
LED Outdoor Lighting Glass Applications by Fixture Type
Optical performance required from glass specification is driven far more by fixture type and application environment than optical material choice. Our factory provides glass components for all commercial and architectural LED applications:
Garden & Landscape Lighting Glass
Exterior lighting lighting glass covers for garden fixtures, driveway lights, and bollard luminaires must withstand the most extreme combination of UV contact, impact exposure, and thermal cycling of any application category.
- UV resistance—no discoloration or hazing after 10+ years of exposure
- IK07 impact rating—endures 2J impact energy, see IEC 62262
- Weather-tightness compatibility—precision machined edges to achieve gasket compression for IP-sealing
- Lightbar glass diffuser profiles, round and square are available
Recessed & Panel Light Diffusers
Diffusing panels for troffer lights, recessed downlights, and light flat panels require extremely thin glass profiles that are 90-100% optically uniform. Any visible hotspot through the cover counts as a product defect in commercial-grade fixtures. A proper diffuser must obscure the LED array entirely.
- High optical haze—haze values from 60-95% depending upon specification
- Thin profile—typically 2–4mm for flush mount compatibility
- High transmittance—glass diffusers sustain 75-90% production output
- Formats up to 1200x800mm—CNC cut to tolerances
Wall Washer & Architectural Lighting
Special cutoff glass lens covers for wall wash luminaires, linear LED bar light systems, and architectural lighting projects often require custom shapes. CNC glass diffuser shapes may be specified for a linear LED bar light guide with a particular width relative tolerance of 0.1mm and a bevel edge profile.
- Precision CNC cutting for irregular profiles and custom shapes
- Polished edge-to-edge glass lens covers for edge-lit light guide applications
- Tanaroh Fogos lensed cover options: clear, frosted, or silk-screen filtered graduated
- RGB fixture compatibility with neutral-tinted substrates
Pool & Underground Light Covers
Glass for submersible pool lights, in-floor fixtures, and fountain lighting presents the most extreme environment for exterior lighting glass. Thermal cycling, hydrostatic pressure, and exposure to chlorinated water all demand the highest-grade tempered glass lamp shades.
- Tempered glass safety lens—shatter pattern is frangible for safe failure
- Isolated-waterproof sealing surface—precision finish edge to support rubber gasket compression
- Chemical resistance—inert to chlorinated and salt-treated water
- Minimum 6mm thickness recommended for submerged applications
Technical Specifications and Optical Performance of LED Lighting Glass Cover
All of the below specification data represents current production at our Dongguan factory. Transmittance and haze values are performed according to ASTM E903 on production samples taken from each batch.
Optical Properties by Glass Type
Scroll to view full table →| Optical Property | Clear Tempered | Frosted | Opal | Unit |
|---|---|---|---|---|
| Light Transmittance | 90–92 | 75–85 | 40–70 | % |
| Haze | <1 | 60–80 | 85–95 | % |
| Color Temp Shift | Negligible | <50K | <100K | K |
| UV Blocking (below 380nm) | Optional AR/UV coat | Standard | Standard | — |
Physical Properties & Mechanical Standards
Scroll to view full table →| Property | Range / Value | Standard / Reference |
|---|---|---|
| Thickness | 2–12 mm | — |
| Impact Resistance | IK07 (2J energy) | IEC 62262 |
| Operating Temperature | −40°C to +250°C (tempered) | — |
| Thermal Shock Resistance | ΔT 200°C | — |
| Edge Type | C-edge, pencil, beveled, polished | — |
| Dimensional Tolerance | ±0.1 mm (CNC) | — |
Surface Treatment Options
AR
Anti-Reflective Coating
Reduces surface reflection from ~8% to under 1%, boosting effective light transmittance to 98%+. Specified for high-efficiency commercial fixtures where every percentage point of optical transmission affects luminaire efficacy ratings.
AG
Anti-Glare Treatment
Micro-texture surface treatment reduces specular reflection by 70%+. Used in display lighting and retail environments where reflected glare from the glass surface creates visual discomfort.
AF
Anti-Fingerprint Coating
Oleophobic coating repels oils and moisture, simplifying maintenance on accessible fixtures. Standard on architectural and hospitality lighting glass where appearance matters.
Glass vs. Polymer Alternatives
Scroll to view full table →| Property | Glass | Polycarbonate | Acrylic |
|---|---|---|---|
| Scratch Resistance | Excellent | Fair | Poor |
| UV Stability | Excellent | Moderate (yellows) | Poor (yellows) |
| Heat Resistance | 250–500°C | 120°C | 80°C |
| Light Transmittance | 90–93% | 88–90% | 92% |
| Outdoor Lifespan | 15+ years | 5–8 years | 3–5 years |

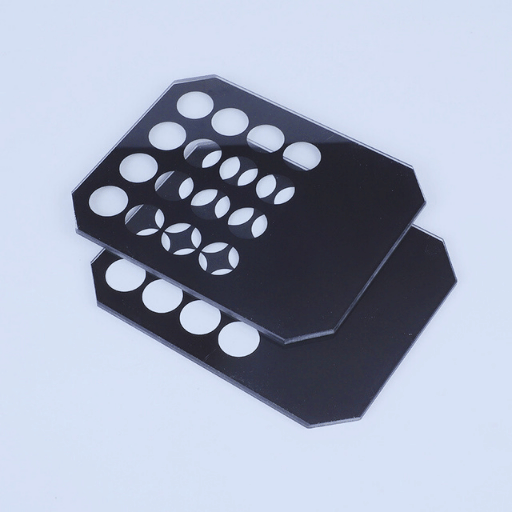

High-Temperature Ceramic Ink Printing on Lamp Glass
Core to the durability of our premium LED lighting glass is our ceramic silk-screening process. Firing temperature — not the ink brand — makes the difference in whether printed features survive the life cycle.
Ceramic vs. Organic Ink: What the Data Shows
| Feature | High-Temp Ceramic (600–700°C) | Low-Temp Organic (180–220°C) |
|---|---|---|
| Ink Type | Ceramic / inorganic frit | Organic / epoxy |
| Adhesion Mechanism | Fused into glass surface (sintered) | Surface adhesion only |
| Scratch Resistance | Excellent passes 4H pencil test | Moderate fails at 2B |
| UV Resistance | No fading inorganic pigments are UV-stable | Fades within 2–3 years |
| Chemical Resistance | Acid and alkali proof | Susceptible to cleaning chemicals |
| Outdoor Lifespan | 10+ years | 2–3 years |
How high you fire is more significant than most customers realize. At 620°C, the ceramic particles start sintering with the glass matrix — ink becomes part of the glass instead of merely an overlying layer. When the firing temperature drops below 500°C, as many suppliers run it to save on energy and cycle time, the ink sits on top of the surface and can be scraped away like coins. Our kilns fire at 620–700°C, dependent on the ink and glass being used. No shortcuts on this step.
Manufacturing Flow
-
CNC Precision Cutting
Automated CNC water-jet and wheel cutting to 0.1mm dimensional tolerance. This is the critical first step — downstream processes perform to the tolerances of the starting dimensions.
-
Edge Grinding & Polishing
C-edge, pencil, beveled or mirror-polished edges to specification. Edge quality impacts thermal stress resistance and gasket sealing performance.
-
Ceramic Ink Silk-Screen Printing
Logos, gradient patterns, decorative renditions and measurement scales printed with durable ceramic frit inks. Registration is performed within 0.3mm on consecutive runs.
-
High-Temperature Firing (620–700°C)
Glass, ink and frit are pass-through-fired in a controlled-atmosphere kiln. Ceramic frits melt at the desired temperature range and sinter as part of the glass matrix creating a permanent bond. The firing process also leads into the annealing which is a prerequisite of the tempering.
-
Tempering (Rapid Controlled Cooling)
Controlling temperature range with high-pressure air quenching just outside the temper oven, the surface of the tempered glass develops biaxial compressive stress which gives glass the desired safe-breaking characteristics according to ASTM C1048 and IEC 60598-1.
-
Surface Coating (AR / AG / AF)
Post-temper optional anti-reflectivity, anti-glare, or fingerprint coating as specified. Labels are matched up to specified performance characteristics prior to heat treatment batch.
-
Quality Inspection (A/B Zone Grading per IEC Standards)
Each piece is inspected in our controlled lighting environment according to acceptance criteria in IEC 60598-1. Tolerances for the optical center (A-zone) are more severe than the outer border (B-zone). Samples for transmittance are gathered according to ASTM E903 with each run.
Manufacturing Capacity
80,000
sqm
Total Factory Area
100+
sets
Automated Equipment
50+
specialists
Glass Processing Technicians
1M+
pieces
Annual Capacity
Custom LED Lighting Glass Solutions
If you can dream it, we can make it. We produce custom glass lighting components to your engineering drawings. Delivering everything from a standard round glass diffuser for an established production run of fixtures, to a led glass diffuser with an irregular profile, manufactured for an urgent new fixture launch, our process enables complete OEM collaboration from first drawing to bulk shipment.
Specifications
Customization Dimensions
Shape
Round, square, rectangular and fully custom profiles. Irregular shapes machined CNC from DXF or STEP files.
Size
Up to 1200 mm × 800 mm maximum panel size. Practical minimum approximately 30 mm diameter.
Thickness
2 mm to 12 mm. Standard stock thicknesses: 2, 3, 4, 5, 6, 8, 10, 12 mm. Non-standard on request.
Surface
Clear, frosted (acid-etch or sandblast), opal diffusing, or silk-screen ceramic printed. Combinations available.
Coating
AR anti-reflective, AG anti-glare, AF anti-fingerprint. Single or multi-layer combinations available.
Printing
Logos, graduated gradients, decorative patterns, measurement scales, RGB color masking, custom shapes and artwork.
Workflow
OEM Collaboration Process
Step 01
Drawing Confirmation
Submit DXF, PDF, or dimensional drawings. We review tolerances and flag any manufacturing constraints before production begins.
Step 02
Sample Production
Physical samples produced in 7–10 days. Dimensional report and optical measurements included with sample shipment.
Step 03
Bulk Production
Upon sample approval, bulk orders run on dedicated production lines with batch traceability. Lead time 15–25 days depending on surface treatment.
Step 04
QC + Shipping
Full inspection per agreed AQL level. Packing engineered for glass safety in transit. Shipping documentation for customs compliance.
Why Choose Saiwei Glass for Lighting Projects
Sourcing led lighting glass components is a decision which impacts fixture performance, warranty liability, and total production cost. Here is why lighting suppliers throughout Europe, North America and Asia continue to manufacture with us.
11
Established Since 2011
Over a decade of glass deep processing experience. Our team has witnessed lighting glass requirements evolve through three generations of LED technology and still maintain production data from every order we have manufactured.
80K
80,000 sqm Manufacturing Base
Three manufacturing facilities operating from our Dongguan, Guangdong factory. Our physical scale enables simultaneous production across multiple customer projects without shared tooling restrictions.
50+
50+ Technical Staff
Dedicated engineers covering product development, process engineering and quality control. Technical team available for specifications review prior to and during glass manufacturing process.
1M+
1M+ Annual Capacity
Mass production without extending lead times. Our annual output of over a million pieces prevents customer ramp-up periods from creating supply shortages.
FPC
Full Process Control
Cutting, grinding, printing, firing, tempering, coating all on our own premises. Nothing gets outsourced — no components, no processes so quality and accountability on every order is assured.
OEM
Global OEM Partner
We have been servicing lighting manufacturers throughout Europe, North America and Asia with custom specifications, standard NDA contracts, and document packages to support CE and UL compliance since 2011. Specifications, process parameters and lead times quoted in this page reflect current Saiwei Glas production capabilities.
Professional Digital Resources
LED Lighting Glass Interactive Tools
Professional digital tools designed to help you select the perfect glass type and visualize optical performance in real-time.
Glass Type Selector
Filter and find the ideal glass substrate based on your specific lighting requirements, such as heat resistance, durability, and dimensions.
Launch Selector Tool
Transmittance Visualizer
Interactively visualize how different glass treatments affect light transmittance and diffusion to eliminate hotspots and glare.
Launch Visualizer Tool
